ENGINEERING LESSONS EPISODE 19 GARUDA VARADHI FLYOVER GROUND SUPPORTING FRAME COLLAPSED

-

 EPISODE 19 GARUDA VARADHI FLYOVER GROUND SUPPORTING FRAME COLLAPSED

Date of Incident: 25/1/2021

Contractor: AFCONS

Fatalities - Officially NO

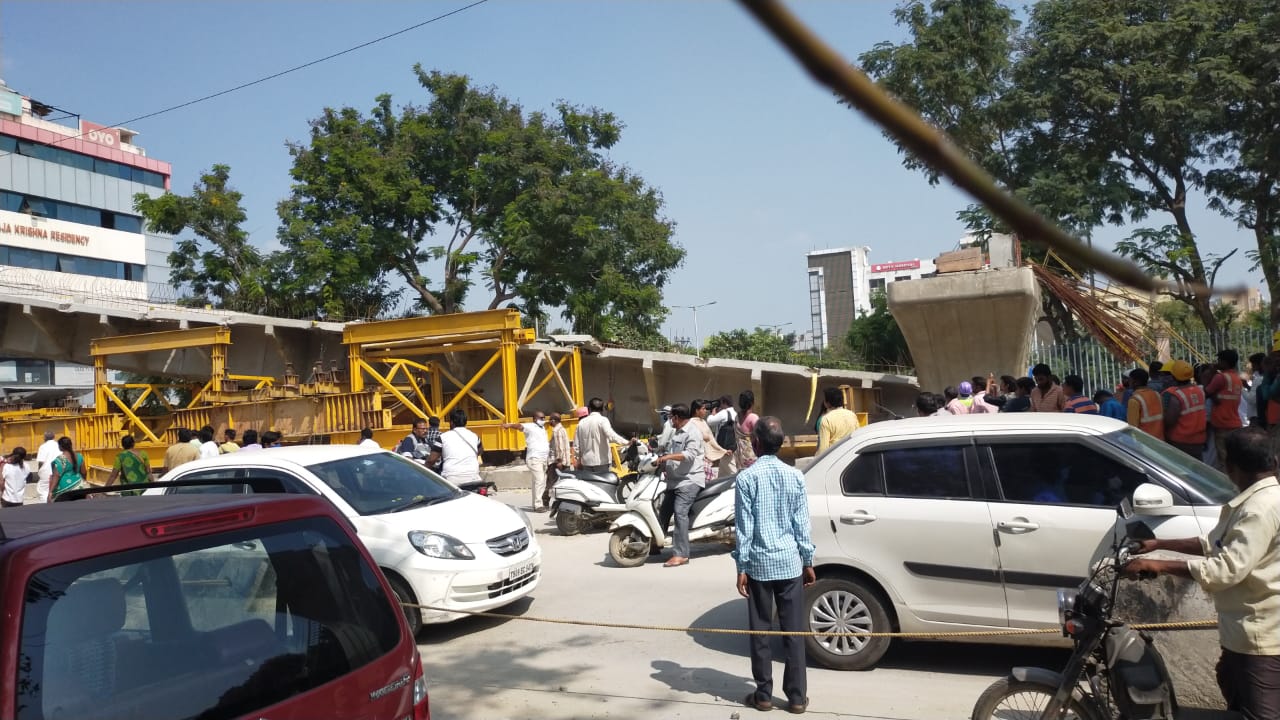

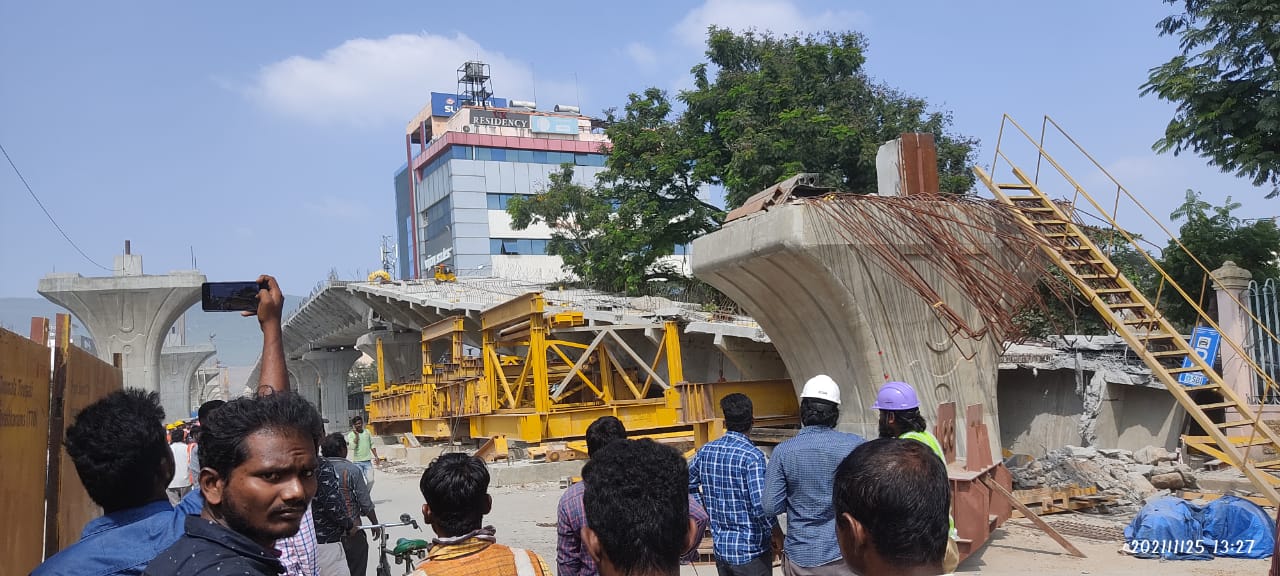

About the Incident:

Usually due to some site constraints, some spans will be casted with Ground Support System where LG Launching is not possible,

In the Incident, there was a down Gradient from the pier to pier levels, even they used the standard Ground Support System which is normally used in Segment/Viaduct Construction. Due to improper interlocking with the end tower with pier might be the reason of the Span Collapse.

Video of the Incident
